Linked List

Abstract

---

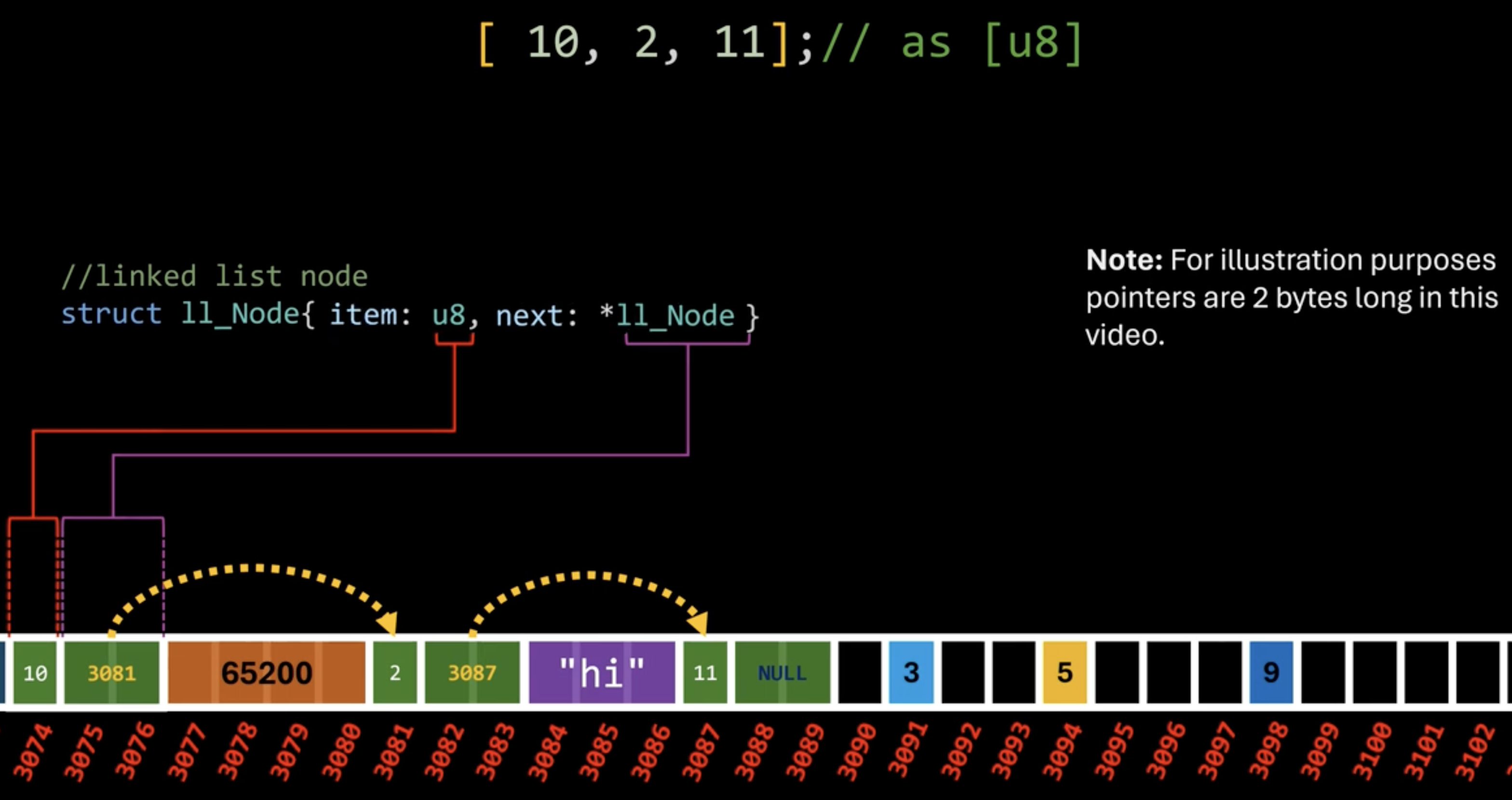

• A Linear collection of elements of the same Datatype that stored in Discrete Memory. Each node contains a Pointer to the next node

Adjustable size with minimal impact

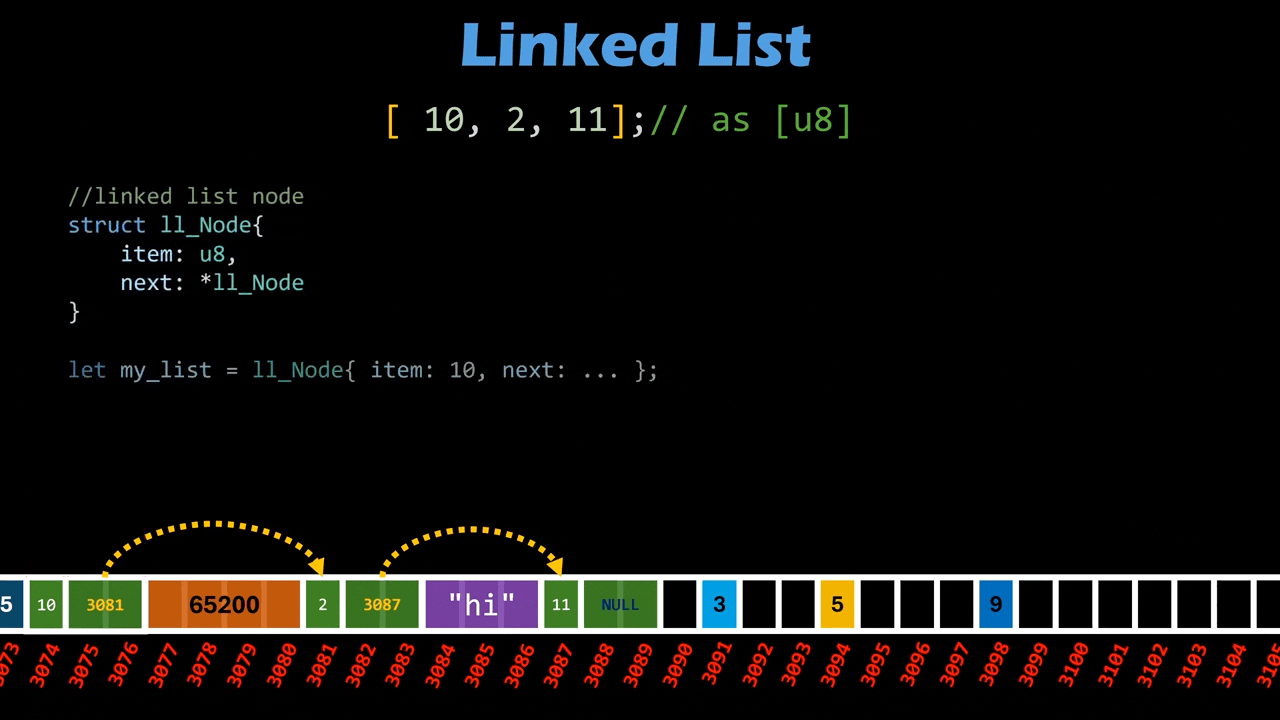

If we want to add in a new node, we just need to modify the pointer of the previous node & the pointer of the next node - in constant time. Since the connection between the 2 nodes are via Pointer, we can have nodes all around the Main Memory. This means we can add more nodes as long as there is free memory size that can fit a single node.

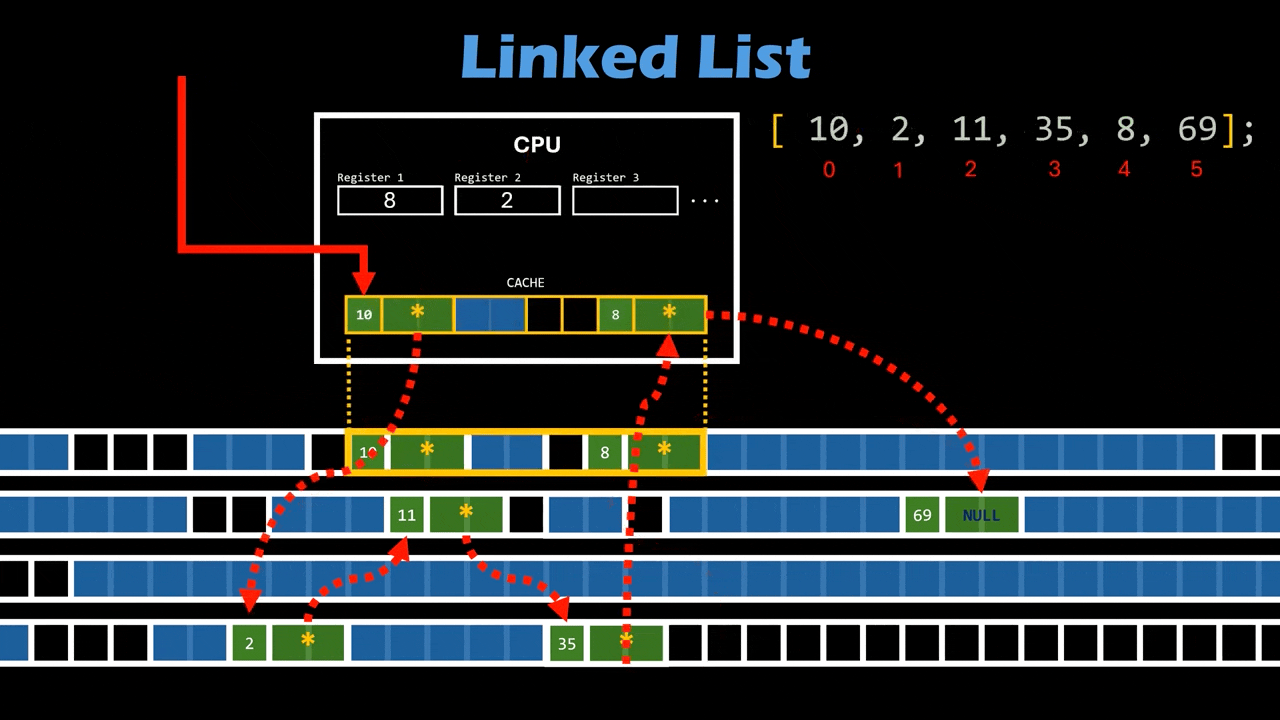

Cache Miss!!!

Since the connection between 2 nodes are via Pointer, the nodes are scattered around the Main Memory. This means we can’t make use of Cache Locality and this results in Cache Miss.

Memory Leak

For languages like C which doesn’t come with a Garbage Collector, we need to manually release deleted node from the Heap Segment to prevent Memory leak.

Linked list node implemented with Java

public class Node {
	int val;
    Node next;

    Node(){}
    Node(int val) this.val = val;
}

Print Out Linked List

public void printLinkedList(ListNode node) {
	ListNode a = node;
	while (node!=null) {
		System.out.printf("%d ", node.val);
		node = node.next;
	}
	System.out.println();
}

Draw It Out

When unsure about the relationship, draw out the nodes & pointers. It really makes the visualization of the manipulation easy!

Virtual Node

O(1) to access either the head node or the tail node, this makes handling edge cases & reverting linked list easier.

Time Complexity

Search

$O(n)$ to search for a value.

Indexing

It takes $O(n)$ to obtain the node at a particular position, because the desired Memory Address can’t be obtained by simply incrementing the index like what we can do with Array. what we have at the start of every indexing is the memory address of the next node, we need to traverse n-1 nodes in order to access nth node.

Insert, Delete

$O(1)$, we only need the node’s previous node and next node, make the corresponding pointer changes.

Attention

We need to index the node before we can perform insertion and deletion. And it takes $O(n)$ for indexing. So generally, insertion and deletion in linked list results in $O(n)$. Unless the operation is performed at the head node or tail node of the linked list. It is recommended to use Array by default unless there are reasons and measurements that show using Linked List is better, refer to Are lists evil? — Bjarne Stroustrup : Standard C++ for more details.

Space Complexity

• Uses more Main Memory compared to Array, because each node contains value, and also a Pointer to the next node

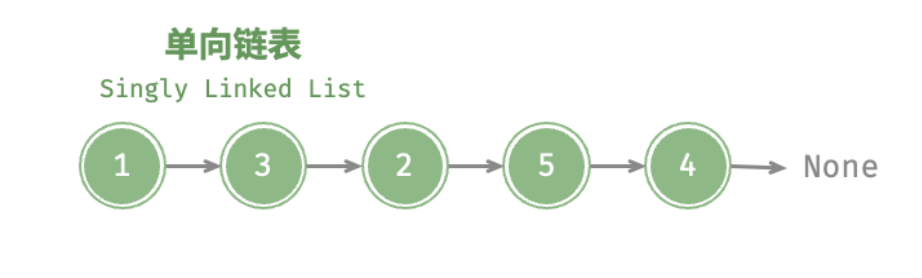

Single Linked List

---

• Implement Stack and Queue (FIFO), it is $O(1)$ to add/remove node from the tail of Linked List, counting in the indexing time
• Used in Hash Map to implement Separate Chaining to handle Hash Collision
• Implement Graph, where each node has Pointer to link up with other nodes

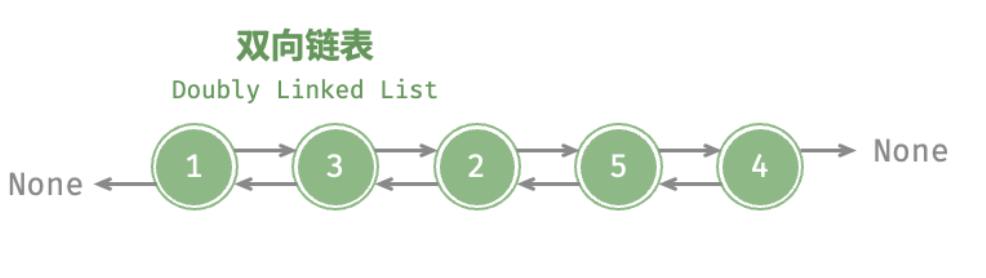

Double Linked List

---

• Implement Advanced Data Structure, like Red Black Tree where we need to know the parent node of a given node
• Implement Eviction Policy like LRU
• Implement Browser History Navigation. When we at a page, knowing what is the previous page (parent node) & what is the next page(child node). This makes the browsing experience more smooth

Node Implementation

public class Node {
  int val;
  Node prev;
  Node next;
  Node() {}

  Node(int key, int val) this.val = val;
}

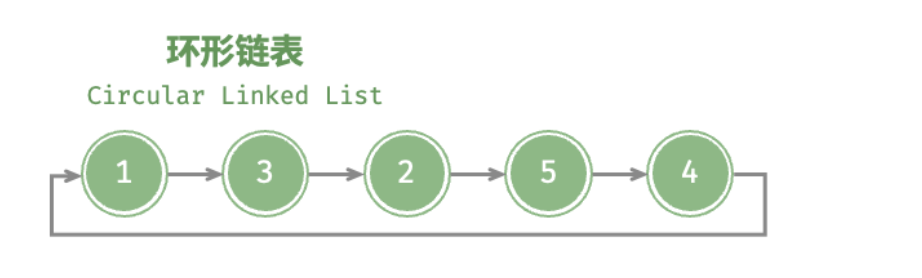

Circular Linked List

---

• Implement Process Scheduling Algorithms, each Process (进程) get a small piece CPU time, each Process (进程) takes turn to execute, forming a loop
